Product Introduction

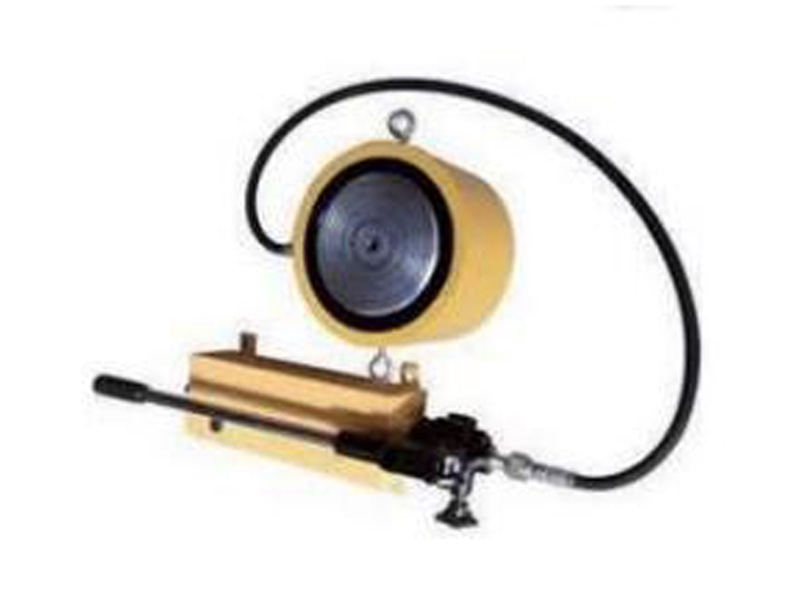

Core Definition: The Ultra Thin Hydraulic Cylinder is a compact lifting device designed based on hydraulic transmission principles. With its extremely flat structure, it breaks the space limitation of traditional jacks and becomes a core tool for narrow operation scenarios.

Core Features: This Ultra Thin Hydraulic Cylinder focuses on "small volume and large power". Its overall height is reduced by more than 50% compared with standard hydraulic jacks, which can be easily embedded in space-constrained areas such as equipment gaps and bridge supports, with stable lifting performance.

Technical Advantages: As a professional hydraulic tool, the Ultra Thin Hydraulic Cylinder integrates high-strength materials and precision hydraulic technology. It not only retains the strong bearing capacity of traditional hydraulic equipment, but also achieves lightweight and miniaturization through structural optimization, solving the pain point that conventional jacks cannot work in narrow spaces.

Product Advantages

Excellent Space Adaptability: The height of the body can be as low as 32mm, without the need for a large operating space. Whether it is the gap at the bottom of the equipment or the gap of the bridge support, it can be flexibly embedded to complete the lifting operation, which is a core advantage unmatched by traditional jacks.

Strong and Stable Bearing Capacity: Adopting 42CrMo high-strength alloy steel cylinder block, combined with precision ground inner wall and enhanced sealing technology, the rated working pressure can reach 21MPa, the bearing tonnage covers 5 tons to 200 tons, and the overload test pressure exceeds 1.5 times the rated pressure, ensuring no shaking or leakage during lifting.

Safe, Durable and Easy to Operate: Equipped with a limit overflow port on the top, which automatically overflows when the piston exceeds the stroke to avoid safety risks; the piston rod is hard chrome plated with elastic sealing sheet design to prevent impurities from entering and extend service life, and supports synchronous lifting of multiple units to adapt to diverse needs.

Product Applications

Construction and Transportation Field: The Ultra Thin Hydraulic Cylinder is used for highway bridge support replacement, track beam leveling and seismic reinforcement of old buildings, which can achieve precise lifting and positioning without damaging the original structure.

Industrial Manufacturing Field: Suitable for machine tool tool feeding, mold clamping, new energy battery pack pressing and other scenarios, especially in the assembly and maintenance of compact equipment, it can complete operations that traditional tools cannot reach.

Marine and Electric Power Field: Used for main engine adjustment in shipyards, steam turbine maintenance and lifting in power plants and other operations. With its small size and strong power, it solves the problems of heavy object lifting and position adjustment in narrow spaces, and improves operation efficiency and safety.
